Блок передачи FOX RS 104 MM сигналов RS-232 по многомодовому оптоволоконному кабелю, 4 порта

Устройство ввода и передачи RS-232 совместно с видео по оптоволокну EXTRON FOX R

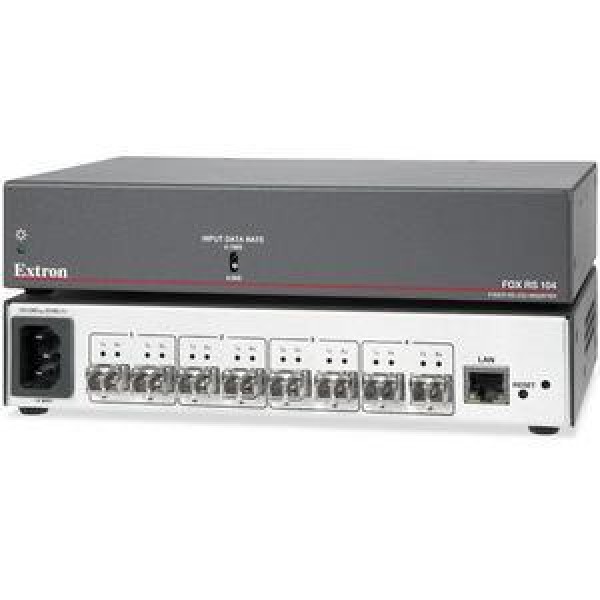

FOX RS 104
Four Port Fiber Optic RS-232 Inserter
ПАРАМЕТРЫ
•RS-232 insertion from the Ethernet port to one or more of the fiber optic outputs — Allows direct insertion of bidirectional serial control data into an optical signal.
•Buffered fiber optic outputs — Original power level is maintained on each output to maximize distance capabilities and ensure full availability of optical loss budget.
•Output reclocking — Reshapes and restores timing of the digital signal.
•Ethernet monitoring and control — Enables Web-based remote management, monitoring, and control.
•Ethernet connectivity for integration with a control system — Eliminates the need for separate control system wiring to remote devices.
•Available as an 850 nm multimode model for moderate-range transmissions, and a 1310 nm singlemode model for extreme distances up to 30 km (18.75 miles) — A FOX RS 104, connected between a FOX Series transmitter and receiver, effectively doubles the overall transmission distance capability. For singlemode applications, signals can thus be sent up to 60 km (37.5 miles) from a transmitter to receiver via the FOX RS 104.
•Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment
•Real-time status LED indicators for troubleshooting and monitoring — Rear panel LEDs verify link status and power.
•Compatible with Extron FOX Series matrix switchers for signal distribution systems up to 1000x1000 and larger
•Compatible with Extron FOX Series distribution amplifiers and switchers
•Compatible with Extron FOX Series HDMI, DVI Plus, DVI, VGA, VGA/YUV, and AV transmitters and receivers
•Reset button — Allows firmware to be returned to original factory settings.
•Rack-mountable 1U, half rack width metal enclosure
•Internal universal power supply — The 100-240 VAC, 50/60 Hz, international power supply provides worldwide power compatibility.
