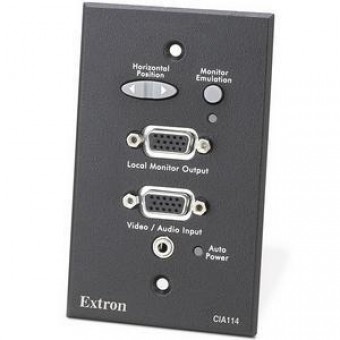

Интерфейс CIA114, настенный (белый)

Интерфейс компьютер - монитор, EXTRON белый, CIA114, 60-597-13

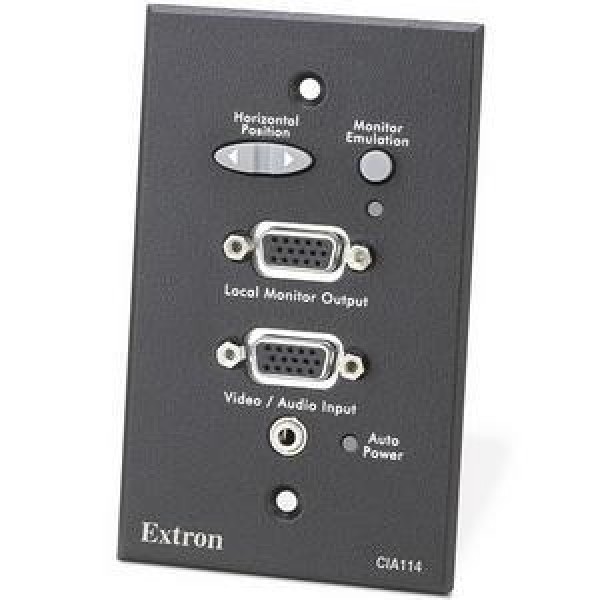

CIA114
Architectural Interface for One-Gang Wall Box
- Input: RGB video on female 15-pin HD connector; audio on 3.5 mm stereo jack
- Output: RGB video on female 5-BNC pigtail; audio on captive screw connector
- 250 MHz (-3 dB) RGB video bandwidth
- Compatible with computer-video resolutions up to UXGA
- Buffered local monitor output
- Variable peaking — A means of compensating for mid- and high-frequency RGB video bandwidth response and for signal losses resulting from cable capacitance. The higher the frequency and the greater the cable length, the more peaking may be required.
- Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering".
- Video hum suppression, differential input
- One-button monitor emulation
- Active PC audio to balanced audio interfacing — Converts computer-generated, unbalanced audio to balanced line level stereo audio for output on a captive screw connector.
- Auto power on/off
- Available in black, white or RAL9010
- Energy-efficient external universal power supply included, replacement part # 70-774-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.
- Installs in US one-gang wall box
