Панель настенная PVT RGB MK для коробов MK, одинарная, RAL9010

Передатчик по витой паре EXTRON VGA и аудио (для PoleVault) PVT RGB MK, 60-911-2

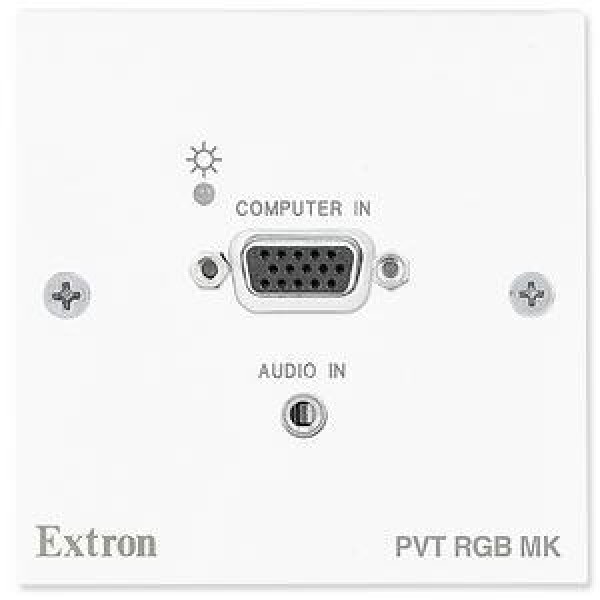

PVT RGB MK
PoleVault VGA Video and Stereo Audio Input – MK Wallplate
The PVT RGB MK VGA Video and Stereo Audio Input is designed to work exclusively with the PVS 204SA Four Input Twisted Pair Switcher as part of a PoleVault® or WallVault® System. The PVT RGB MK accepts VGA computer-video signals on a female 15-pin HD connector and stereo audio on a 3.5 mm stereo mini jack. Signals are transmitted to the switcher on two twisted pair cables that connect on spring force wire connectors.
All PVT Series inputs can be used with any CAT 5, 5e, or 6 twisted pair cable or Extron Enhanced Skew-Free™ AV UTP cable.
The PVT RGB MK is powered by the PVS 204SA switcher via the twisted pair cable, features an LED power indicator for easy troubleshooting, and provides active balanced transmissions for both vide
ПАРАМЕТРЫ
- Available exclusively as part of a PoleVault® or WallVault® System
- Transmits VGA computer video and stereo audio signals to a PoleVault Switcher
- Signals are sent over two CAT 5 UTP cables that connect on spring force wire connectors
- VGA video input on a female 15-pin HD connector; audio input on a 3.5 mm stereo mini jack
- Designed to mount in a 47 mm deep single MK junction box for UK, Singapore, Hong Kong and other markets that use MK-type junction boxes
