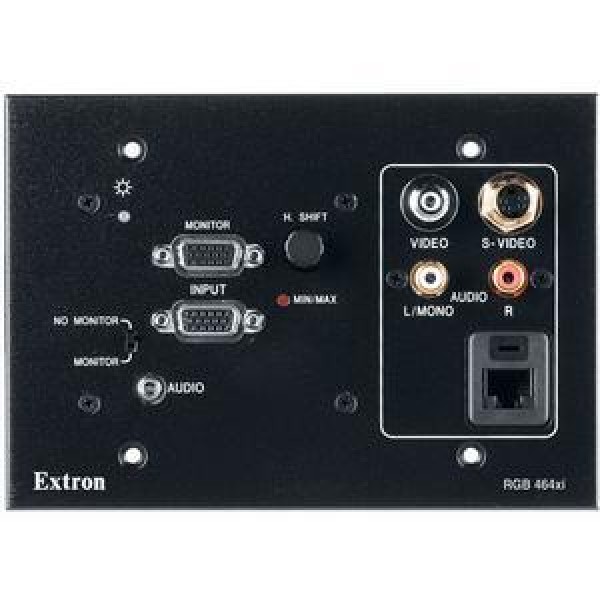

Интерфейс Extron RGB 464xi, настенный (черный)

Интерфейс компьютер - монитор, EXTRON черный, RGB 464xi, 60-374-02

RGB 464xi
Архитектурный интерфейс с возможностью установки в трехпозиционный стенной монтажный бокс и подключения аудио-видео
ПАРАМЕТРЫ
- Устанавливается в трехпозиционный монтажный бокс
- Включает сквозной коннектор композитного видео, RCA в BNC , сквозной коннектор S-video, 4-контактный мини-DIN F-F, активный стерео/моно, небалансный – балансный коннектор и RJ-45 для сетевого и телефонного подключений
- Input: RGB video on female 15-pin HD connector audio on 3.5 mm stereo mini jack
- Output: RGB video on female 5-BNC pigtail; audio on captive screw connector
- 300 MHz (-3 dB) RGB video bandwidth
- Compatible with computer-video resolutions up to QXGA
- ADSP™ – Advanced Digital Sync Processing — An exclusive Extron technology that conditions sync signals to provide reliable operation with a variety of signal sources and display types. ADSP reshapes the sync signals, restores proper TTL voltage levels, and maintains the original video to sync timing relationships while allowing centering control.
- DDSP™ – Digital Display Sync Processing — Allows the sync signal to pass through without altering sync pulse or width. Disables other sync processing features such as horizontal and vertical centering.
- Active PC audio to balanced audio interfacing — Converts unbalanced PC audio to balanced line level audio for output on a captive screw connector.
- Three-position level/peaking control — Boosts and equalizes video signals to compensate for signal loss and high frequency attenuation that occur in long cable runs.
- Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering".
- Buffered local monitor output
- Energy-efficient external universal power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.
