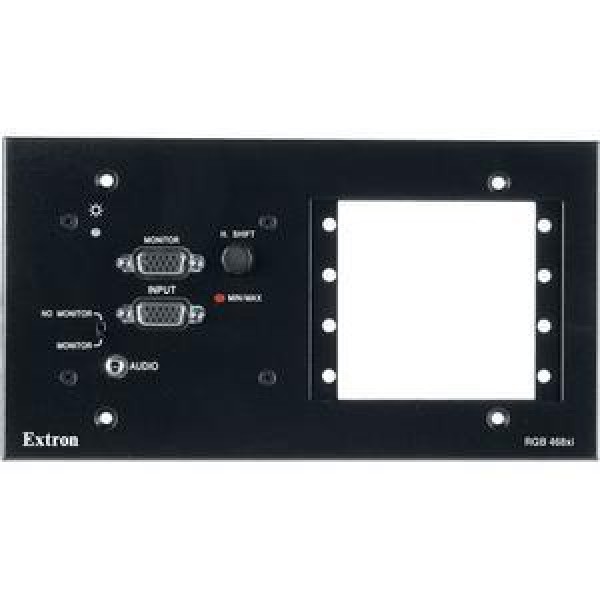

Интерфейс Extron RGB 468xi, настенный (черный)

Интерфейс компьютер - монитор, окно AAP х 4, EXTRON черный, RGB 468xi, 60-375-02

RGB 468xi
Архитектурный интерфейс для установки в четырехпозиционный монтажный бокс с отверстием для плат архитектурного адаптера (AAP)
ПРРАМЕТРЫ
- Устанавливается в стенной четырехпозиционный мотажный бокс
- Разъемы для четырех AAP – плат архитектурных адаптеров, которые продаются отдельно
- Input: RGB video on female 15-pin HD connector; audio on 3.5 mm stereo mini jack
- Output: RGB video on female 5-BNC pigtail; audio on captive screw connector
- 300 MHz (-3 dB) RGB video bandwidth
- Compatible with computer-video resolutions up to QXGA
- Buffered local monitor output
- ADSP™ – Advanced Digital Sync Processing
- DDSP™ – Digital Display Sync Processing — Allows the sync signal to pass through without altering sync pulse or width. Disables other sync processing features such as horizontal and vertical centering.
- Three-position level/peaking control — Boosts and equalizes video signals to compensate for signal loss and high frequency attenuation that occur in long cable runs.
- Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering".
- Active PC audio to balanced audio interfacing — Converts unbalanced PC audio to balanced line level audio for output on a captive screw connector.
- Opening for four AAP – Architectural Adapter Plates — Extron offers a wide selection of active and passive AAPs with audio, video, phone, data, power, and control connectors, that fit together for attractive and completely customizable AV connectivity. AAPs sold separately.
- Available in black, white or RAL9010
- Energy-efficient external universal power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.
- Installs in US four-gang wall box
