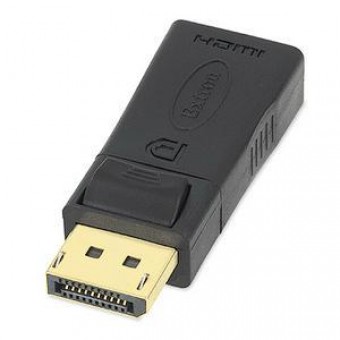

Адаптер DisplayPort Male - HDMI Female

Адаптер DisplayPort (вилка) - HDMI (розетка) EXTRON DP-HDMIF, 26-655-01

DP-HDMIF

DisplayPort Male to HDMI Female Active Adapter


Параметры

•Provides connectivity between dual-mode DisplayPort equipped sources and HDMI displays
•Passes EDID information from HDMI display to the source
•HDCP compliant
•Latching DisplayPort connector
•Conforms to HDMI High Speed Cable specifications
•Supports signals up to 1920 x 1200 @60 Hz and 1080p/60
•Data rates of 10.2 Gbps
•Color depth to 48 bits – 16 bits per color
•Complies with VESA Interoperability Guideline
•Gold-plated contacts

Note: The DP-HDMIF adapter is for use with DisplayPort multimode (DP++) sources to HDMI equipped devices, such as a display. This product cannot be used in the reverse direction to connect an HDMI source to a DisplayPort enabled device, such as a display. See the user manual for additional information.


The Extron DP-HDMIF is an active, one-way adapter that enables transmission of signals from dual-mode DisplayPort equipped sources to HDMI displays. It supports the DisplayPort Version 1.1a specification and resolutions to 1920 x 1200 @60Hz and 1080p/60. The DP-HDMIF features a latching DisplayPort male connector, providing a secure connection at the source. The DP-HDMIF is ideal for use when integrating DisplayPort equipped laptop computer and other devices with HDMI equipped projectors or flat-panel displalys.

Примерный вес брутто 0,01 кг.
